Home » Services » Moulding

Sunplast Electronics has installed state of the art moulding machines imported from Hawachin, Taiwan. These machines are fully equipped to mould plastic parts with highest standards of precision and accuracy.

Installed Machines

S. No.	Machine Model	Quantity
1.	Injection moulding 350 Ton	01
2.	Injection Moulding 400 Ton	01
3.	Injection Moulding 450 Ton	06
4.	Injection Moulding 600 Ton	04
5.	Injection Moulding 800 Ton	02
6.	Injection Moulding 1060 Ton	01
Total		15 Nos.

Machines Specifications

Models	Unit	HC - 450		HC - 600		HC - 800		HC - 1060
Clamping Tonage	Ton	450-1	450-2	600-1	600-2	800-1	800-2	1060
Injection System		350 \|	450 \|	450 \|	600 \|	600 \|	800 \|	800 \|
Screw Diameter	Size	S	S	S	S	S	S	S
Screw Diameter	mm	65	75	75	80	80	90	90
Injection Pressure	Kg/cm2	1590	1588	1588	1680	1680	1725	1725
Shot Weight (PS)	gram	894	1590	1590	1989	1989	2689	2689
Shot Weight (PS)	OZ	31.5	56	56	70	70	94.7	94.7
Clamping System
Clamping Stroke	mm	880		950		1050		1260
Spaces between Tie Bars (H x V)	mm	780 x 780		880 x 880		1005 x 1000		1120 x 1120
Mold Platen Dimensions (H x V)	mm	1160 x 1160		1300 x 1300		1470 x 1470		1630 x 1630
Range of Mold Hight	mm	250 - 870		275 - 1020		300 -1100		300 - 1200
Range of Mold Hight	mm	250 - 870		275 - 1020		300 -1100		300 - 1200
Heater Capacity (220V)	kw	27.4		30.2		38		62.2

Proposed Second Phase Plan

Plant Layout

- Single flow (FIFO) for all material
- Having mezzanine provision to start assembly operations.
- Having the facility of quality gate to maintain high quality standards for our product.
- Having the facility of double dispatch ramp to maintain Just In Time Deliveries to our customers.

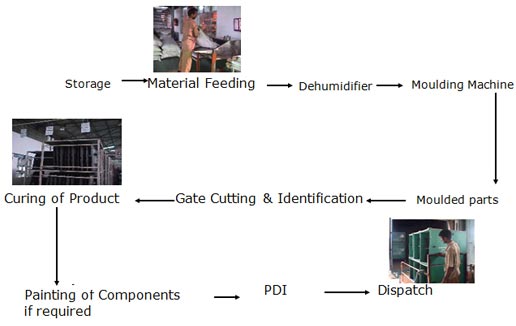

Process Flow of Plastic Parts

Gas Injection Moulding

Gas Injection Facility will be integrated with Machines above the capacity of 450 Tons

Steam Injection Moulding

Steam Injection Facility will be integrated with Machines above the capacity of 1360 -1600 Tons
